GMDSS Equipments

Features

The JSS-2150/2250/2500 MF/HF Class A DSC radio equipment features an intuitive user interface and a highly reliable circuit that enables all-mode continuous full power operation.

Class A 6CH DSC watch-keeping built-in

The MF/HF has Digital Selective Calling (DSC*) as standard with a built in Class A 6CH DSC watch-keeping receiver. You can transmit and receive digital selective calls for quick and efficient establishment of distress, urgency, safety and routine communication with other ships and coast stations. In distress situations, the MF/HF sends an alert once you press the distress button. The integrated DSC watch-keeping receiver monitors distress alarms through continuous scanning of distress frequencies.

Fully meets new ITU-R M.493-13

MF/HF controller settings

The MF/HF controller uses a 3.8-inch high visibility LCD display, which you can adjust at your own convenience. The display has 10 dim settings and you can set the contrast up to 11 different levels. An integrated screensaver and the ability to assign a commonly used menu to a user key for direct access, are just a few of the possibilities.

Distress alerts

The MF/HF controller includes a prominent distress button, with features to prevent accidental activation. When in distress, you can send a DSC message instantly, transmitting your MMSI, position, time of position and nature of distress, enabling an immediate response for search and rescue efforts.

Digital audio

The MF/HF controller integrates an advanced digital audio amplifier, which increases the amount of power, making the receiving message loud and clear.

Connect a remote control

Getting a second operation controller onboard is easy. Connect a second MF/HF controller to the transceiver and position the controller at a secondary location on the ship. The second MF/HF station is fully operable and you can transfer saved channel data to optimize your operation.

Easy operation

5-inch color LCD touch display

Class A DSC complying latest GMDSS requirement

High quality sound (Hi-Fi audio)

Easy to install by compact design

Up to 4 remote controllers

All-in-one design

New designed speaker and handset

Bluetooth® interface for wireless speaker mic

Waterproof design (IP56)

Floating GMDSS two-way VHF Radiotelephone

Excellent sound quality under all conditions

Intuitive and easy-to-use design, lightweight and compact

Depending on the installed battery, automatically switch to emergency mode and regular mode

Large-capacity battery pack enables long-time operation of 12 hours

Up to 57 channels can be used in regular mode

New designed speaker and handset

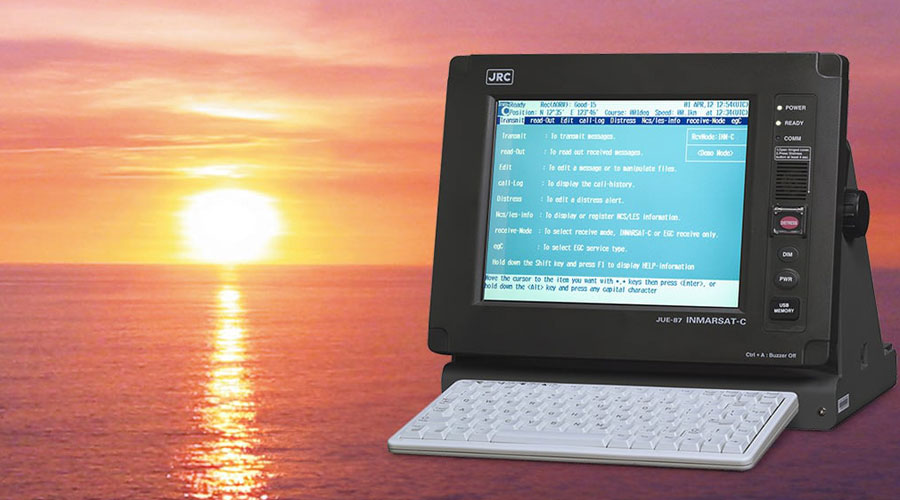

About the Inmarsat C system

JRC JUE-87 Inmarsat C is a digital satellite communication system whereby data can be encoded into digital format, whether text, numeric data from instruments or other information in digital format can be sent and received over the system. A simple user interface allows sending and receiving messages.

All-in-one Internally Mounted Equipment

The new Internally Mounted Equipment (IME) with display features a high brightness color LCD with an extra wide viewing angle.

Data terminal unit is integrated into the Inmarsat C IME allowing for a straightforward installation approach and is ready for our Remote Maintenance System (RMS).

USB

The USB 2.0 port located on the front panel allows you to connect a mass storage device to save and load messages.

The display

Our new IME with 10.4-inch display features a color display with a variety of coloring menus. Factory default color is Ocean Day. The LCD gives you a bright picture with excellent color consistency, even when you're viewing the display from the side.

Conforming to the IMO resolution MSC.471 (101)

AIS homing technology included for faster localization

Supports Multi-GNSS

Prepared for RLS* through Galileo

Infrared LED light for night vision devices and assisted SAR

5.7 inch Wide LCD Screen

Automatic Tune Function by GPS

Full meet latest IMO

3 receiving frequencies

Printer less type

Easy Installation

Easy operation

External Printer (Option)

Navtex data export function for Integrated Navigation System (ECDIS or etc.)

Small and compact design with non-hazardous battery.

5 years maintenance kit, serviceable on board.

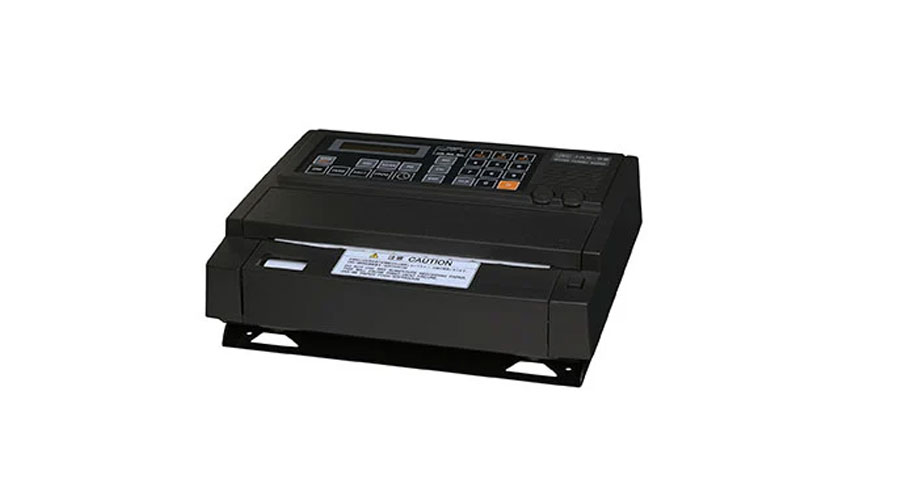

Flexible operation and recording system

The received fax broadcasts are recorded on thermal recording paper, using a thermal head with less moving parts. JRC integrated an automatic frequency selection, allowing for optimized receiving. The JAX-9B can receive in four different modes.

Automatic recording

All operations can be remotely controlled to automatically start up, set parameters, receiving images, feed paper, and stop by remote signals from the broadcasting stations. Only halftone recording is manually controlled.

Manual recording

You can manually set the index of co-operation (IOC), scanning speed, and the halftone recording. The JAX-9B automatically records and stops in this mode.

Forced recording

This is an extensive function of the automatic recording mode. The JAX-9B can manually record while neither in automatic or manual recording mode, also while broadcasting is in progress. Phasing is done manually. It also adopts to an unique system to terminate phase matching instantaneously.

Timer programme recording

The period of the start and stop modes, station frequencies, and half-tone on/off are easy programmable. Whilst combined with the fully automatic mode, and unattended, error-free operation is made possible.
